This notebook introduces how to use the NOAA Severe Weather Data Inventory (SWDI) on Wherobots. We will:

Load CSV-formatted storm event data from an AWS S3 bucket.
Prepare the data for geospatial queries by converting lat/long columns into a single POINT column.
Load 2-dimensional geometry to use in a filter over the severe weather points.
Visualize the points and the surrounding geography on an interactive map using SedonaKepler.

Why use Wherobots for storm data?

The size and complexity of storm event data can make it hard or expensive to analyze. Wherobots helps you write fast and cost-efficient analytics with:

Lazy Loading → Data is pulled into memory only when needed to run a query.
Distributed Query Execution → Join and filter without moving large files.
Fast Geospatial Filtering → Quickly combine and compare just the relevant data based on its geography.

Wherobots also makes it easy to seamlessly combine vector and raster data. We can analyze the NOAA vector storm data along with:

Administrative boundaries (counties, states, etc.)
Critical infrastructure (power grids, highways, etc.)
Other meteorological data (temperature, precipitation, etc.)

This makes Wherobots ideal for storm tracking, risk assessment, and severe weather analytics.

What is NOAA SWDI?

The NOAA Severe Weather Data Inventory (SWDI) aggregates severe weather records from multiple sources, including:

NEXRAD Level-3 products (tornado vortex signatures, hail signatures, mesocyclones)
Storm warnings (severe thunderstorm, tornado, flash flood, and special marine warnings)
Vaisala’s National Lightning Detection Network (NLDN)
Storm cell structures (size, rotation, etc.)

How is this data useful?

The SWDI dataset can answer key public safety and business questions across many domains, including:

Insurance & Risk Analysis – Assessing hailstorm damage and storm frequency
Disaster Response Planning – Understanding severe storm patterns for emergency planning
Climate Change Studies – Analyzing shifts in extreme weather events
Storm Tracking & Forecasting – Validating storm prediction models

Data files

The SWDI dataset contains smaller datasets of different aspects of storm activity.

Dataset	Description	File Naming Convention
Hail Reports	NEXRAD Level-3 Hail Signatures, including size and severity	`hail-YYYY.csv`
Hail Tiles	Hail data aggregated by spatial tiles	`hail-tiles-YYYY.csv`
Mesocyclones	Rotational features in storms detected by radar	`meso-YYYY.csv`
Mesocyclone Tiles	Mesocyclone data aggregated by tiles	`meso-tiles-YYYY.csv`
Tornado Vortex Signatures (TVS)	Radar-detected tornado signatures	`tvs-YYYY.csv`
TVS Tiles	Tornado vortex signatures aggregated by tiles	`tvs-tiles-YYYY.csv`
Storm Structure	NEXRAD Level-3 storm cell data, including size and intensity	`structure-YYYY.csv`
Storm Structure Tiles	Aggregated storm structure data by spatial tiles	`structure-tiles-YYYY.csv`
Lightning Strikes	Lightning detection data (restricted access)	`nldn-YYYY.csv`
Storm-Based Warnings	Official severe weather warnings from NOAA	`warn-YYYY.csv`

Data contents

Date range: 1995 to the present, updated monthly
Formats: CSV, Shapefiles, KMZ, JSON, XML
Open access on AWS Marketplace: s3://noaa-swdi-pds/
File granularity: Aggregated by year for past years and by month for the current year

Writing the code

Set up an Apache Sedona context

The context, sedona, is the machine that runs in the Wherobots Cloud compute environment. To connect to the SWDI data on AWS, we add anonymous S3 access credentials when we call SedonaContext.builder().getOrCreate(). You can read our documentation about how to further configure the Sedona context.

from sedona.spark import *

try:
    sedona
except NameError:
    config = SedonaContext.builder() \
    .config("fs.s3a.bucket.noaa-swdi-pds.aws.credentials.provider","org.apache.hadoop.fs.s3a.AnonymousAWSCredentialsProvider") \
    .config("spark.hadoop.fs.s3a.bucket.noaa-swdi-pds.aws.credentials.provider", "org.apache.hadoop.fs.s3a.AnonymousAWSCredentialsProvider") \
    .getOrCreate()
    sedona = SedonaContext.create(config)

Load and prepare SWDI hailstorm data

We will load two types of storm data into Wherobots DataFrames. First, we will work with NEXRAD Level-3 Hail Signatures:

Load 12.2M point locations of hail storm signatures from 2023.
Use the ST_Intersects() spatial filter to find the storms contained within a region.
Use Sedona Kepler to draw a map of those storms, coloring each storm by the size of the hail.

Read NEXRAD Level-3 Hail Signatures

Using PySpark, we will read the CSV file with 2023 hail signatures. The file starts like this:

#This file contains experimental data.
#File written at Sun Feb  5 09:35:10 EST 2023.
#ZTIME,LON,LAT,WSR_ID,CELL_ID,RANGE,AZIMUTH,SEVPROB,PROB,MAXSIZE
20230101000145,-76.98093,33.78684,KRAX,K7,135,146,-999,-999,-999
20230101000145,-75.84620,36.05329,KRAX,D8,131,79,-999,-999,-999
...

We load and prepare the data by:

Skipping the comment lines in the header
Keeping the CSV file’s column names in our dataframe
Parsing the timestamp string
Converting the LON and LAT columns into a single Sedona point geometry column that can be used efficiently in geospatial queries

%%time

from pyspark.sql.functions import expr, col, to_timestamp

dataset = 'hail'
year = '2023'
s3_uri = f"s3://noaa-swdi-pds/{dataset}-{year}.csv"
column_names = ['ZTIME', 'LON', 'LAT', 'WSR_ID', 'CELL_ID', 'RANGE', 'AZIMUTH', 'SEVPROB', 'PROB', 'MAXSIZE']

hail_df = sedona.read.option("comment", "#")\
                .csv(s3_uri)\
                .toDF(*column_names)\
                .withColumn("ZTIME", to_timestamp(col("ZTIME"), "yyyyMMddHHmmss"))\
                .withColumn("geometry", expr("ST_Point(LON, LAT)"))

hail_df.cache().count()

hail_df.show(5)

Filter to storms inside Texas on April 28th, 2023

To filter to Texas, we will first grab the geometry of Texas from the divisions_division_area table in the Overture Maps Foundation dataset, hosted in the Wherobots Open Data catalog.

texas_geometry = sedona.table("wherobots_open_data.overture_maps_foundation.divisions_division_area")\
                    .where(col("subtype") == "region")\
                    .where(col("region") == "US-TX")\
                    .selectExpr("geometry").collect()[0][0]

texas_geometry

Next, we will filter to a specific date and use the Wherobots ST_Intersects predicate function to find the points inside texas_geometry.

%%time
from pyspark.sql.functions import year, to_date

texas_hail_20230428_df = hail_df.withColumn("date", to_date("ZTIME"))\
                        .where(to_date("ZTIME") == "2023-04-28")\
                        .where(expr(f"ST_Intersects(geometry, ST_GeomFromEWKT('{texas_geometry}'))"))

Visualize the hailstorms on a map

Finally, we create an interactive map using SedonaKepler. We pull the county boundaries from the open Overture Maps Foundation dataset to use as a layer on the map.

texas_counties_df = sedona.table("wherobots_open_data.overture_maps_foundation.divisions_division_area")\
                    .where(col("subtype") == "county")\
                    .where(col("region") == "US-TX")\
                    .select("geometry", "names.primary")

texas_counties_df.show(5)

And configure the map with a JSON map config (docs) so that storms with larger hailstones have a darker color.

map_config = {'version': 'v1', 'config': {'visState': {'filters': [], 'layers': [{'id': 'moqp08f', 'type': 'geojson', 'config': {'dataId': 'hail', 'label': 'hail', 'color': [255, 153, 31], 'highlightColor': [252, 242, 26, 255], 'columns': {'geojson': 'geometry'}, 'isVisible': True, 'visConfig': {'opacity': 0.8, 'strokeOpacity': 0.8, 'thickness': 0.1, 'strokeColor': [255, 254, 230], 'colorRange': {'name': 'ColorBrewer PuBu-6', 'type': 'sequential', 'category': 'ColorBrewer', 'colors': ['#f1eef6', '#d0d1e6', '#a6bddb', '#74a9cf', '#2b8cbe', '#045a8d'], 'reversed': False}, 'strokeColorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'radius': 10, 'sizeRange': [0, 10], 'radiusRange': [0, 50], 'heightRange': [0, 500], 'elevationScale': 5, 'enableElevationZoomFactor': True, 'stroked': True, 'filled': True, 'enable3d': False, 'wireframe': False}, 'hidden': False, 'textLabel': [{'field': None, 'color': [255, 255, 255], 'size': 18, 'offset': [0, 0], 'anchor': 'start', 'alignment': 'center', 'outlineWidth': 0, 'outlineColor': [255, 0, 0, 255], 'background': False, 'backgroundColor': [0, 0, 200, 255]}]}, 'visualChannels': {'colorField': {'name': 'MAXSIZE', 'type': 'real'}, 'colorScale': 'quantile', 'strokeColorField': None, 'strokeColorScale': 'quantile', 'sizeField': None, 'sizeScale': 'linear', 'heightField': None, 'heightScale': 'linear', 'radiusField': None, 'radiusScale': 'linear'}}, {'id': 'jkl0v3o', 'type': 'geojson', 'config': {'dataId': 'counties', 'label': 'counties', 'color': [254, 137, 26], 'highlightColor': [252, 242, 26, 255], 'columns': {'geojson': 'geometry'}, 'isVisible': True, 'visConfig': {'opacity': 0.2, 'strokeOpacity': 0.2, 'thickness': 0.5, 'strokeColor': [34, 63, 154], 'colorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'strokeColorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'radius': 10, 'sizeRange': [0, 10], 'radiusRange': [0, 50], 'heightRange': [0, 500], 'elevationScale': 5, 'enableElevationZoomFactor': True, 'stroked': True, 'filled': True, 'enable3d': False, 'wireframe': False}, 'hidden': False, 'textLabel': [{'field': None, 'color': [255, 255, 255], 'size': 18, 'offset': [0, 0], 'anchor': 'start', 'alignment': 'center', 'outlineWidth': 0, 'outlineColor': [255, 0, 0, 255], 'background': False, 'backgroundColor': [0, 0, 200, 255]}]}, 'visualChannels': {'colorField': None, 'colorScale': 'quantile', 'strokeColorField': None, 'strokeColorScale': 'quantile', 'sizeField': None, 'sizeScale': 'linear', 'heightField': None, 'heightScale': 'linear', 'radiusField': None, 'radiusScale': 'linear'}}], 'effects': [], 'interactionConfig': {'tooltip': {'fieldsToShow': {'hail': [{'name': 'ZTIME', 'format': None}, {'name': 'MAXSIZE', 'format': None}, {'name': 'SEVPROB', 'format': None}, {'name': 'PROB', 'format': None}], 'counties': [{'name': 'primary', 'format': None}]}, 'compareMode': False, 'compareType': 'absolute', 'enabled': True}, 'brush': {'size': 0.5, 'enabled': False}, 'geocoder': {'enabled': False}, 'coordinate': {'enabled': False}}, 'layerBlending': 'normal', 'overlayBlending': 'normal', 'splitMaps': [], 'animationConfig': {'currentTime': None, 'speed': 1}, 'editor': {'features': [], 'visible': True}}, 'mapStyle': {'styleType': 'dark-matter', 'topLayerGroups': {}, 'visibleLayerGroups': {'label': True, 'road': True, 'border': False, 'building': True, 'water': True, 'land': True, '3d building': False}, 'threeDBuildingColor': [15.035172933000911, 15.035172933000911, 15.035172933000911], 'backgroundColor': [0, 0, 0], 'mapStyles': {}}}}

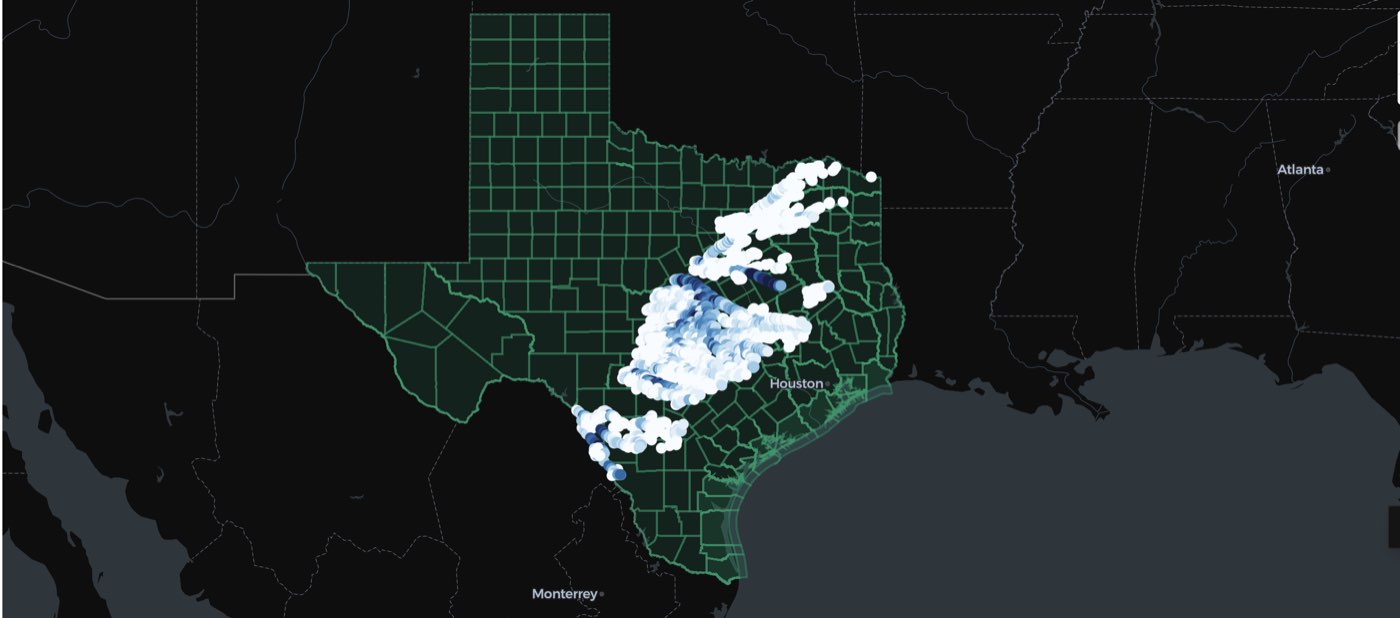

texas_hail_20230428_map = SedonaKepler.create_map(texas_hail_20230428_df.where(col("date") == "2023-04-28"), name="hail", config=map_config)
SedonaKepler.add_df(texas_hail_20230428_map, texas_counties_df, name = "counties")

texas_hail_20230428_map

Read NEXRAD Level-3 storm cell data

Next, we’ll do a similar process for 38.8M points of storm data in Oklahoma for a single day from 2023.

hail_df.unpersist()

%%time
from pyspark.sql.functions import expr, col, to_timestamp

dataset = 'structure'
year = '2023'
s3_uri = f"s3://noaa-swdi-pds/{dataset}-{year}.csv"
columns_names = ['ZTIME', 'LON', 'LAT', 'WSR_ID', 'CELL_ID', 'RANGE', 'AZIMUTH', 'BASE_HEIGHT', 'TOP_HEIGHT', 'VIL', 'MAX_REFLECT', 'HEIGHT']

# Read storm cell CSV file for 2023 and convert LAT/LON to POINT geometry
storm_df = sedona.read.option("comment", "#")\
                .csv(s3_uri)\
                .toDF(*columns_names)\
                .withColumn("ZTIME", to_timestamp(col("ZTIME"), "yyyyMMddHHmmss"))\
                .withColumn("geometry", expr("ST_Point(LON, LAT)"))

storm_df.cache().count()

# Get geometry of Oklahoma to filter with ST_Intersects
oklahoma_geometry = sedona.table("wherobots_open_data.overture_maps_foundation.divisions_division_area")\
                    .where(col("subtype") == "region")\
                    .where(col("region") == "US-OK")\
                    .selectExpr("geometry").collect()[0][0]

oklahoma_geometry

from pyspark.sql.functions import year, to_date

# Filter to Oklahoma on April 27, 2023
oklahoma_storm_20230427_df = storm_df.withColumn("date", to_date("ZTIME"))\
                        .where(to_date("ZTIME") == "2023-04-27")\
                        .where(expr(f"ST_Intersects(geometry, ST_GeomFromEWKT('{oklahoma_geometry}'))"))

oklahoma_storm_20230427_df.count()

# Pull the geometry of Oklahoma counties to use as a map layer
oklahoma_counties_df = sedona.table("wherobots_open_data.overture_maps_foundation.divisions_division_area")\
                    .where(col("subtype") == "county")\
                    .where(col("region") == "US-OK")\
                    .select("geometry", "names.primary")

oklahoma_counties_df.show(5)

# Encode VIL (Vertically Integrated Liquid) on color
map_config = {'version': 'v1', 'config': {'visState': {'filters': [], 'layers': [{'id': 'moqp08f', 'type': 'geojson', 'config': {'dataId': 'storm', 'label': 'storm', 'color': [255, 153, 31], 'highlightColor': [252, 242, 26, 255], 'columns': {'geojson': 'geometry'}, 'isVisible': True, 'visConfig': {'opacity': 0.8, 'strokeOpacity': 0.8, 'thickness': 0.1, 'strokeColor': [255, 254, 230], 'colorRange': {'name': 'ColorBrewer PuBu-6', 'type': 'sequential', 'category': 'ColorBrewer', 'colors': ['#f1eef6', '#d0d1e6', '#a6bddb', '#74a9cf', '#2b8cbe', '#045a8d'], 'reversed': False}, 'strokeColorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'radius': 10, 'sizeRange': [0, 10], 'radiusRange': [0, 50], 'heightRange': [0, 500], 'elevationScale': 5, 'enableElevationZoomFactor': True, 'stroked': True, 'filled': True, 'enable3d': False, 'wireframe': False}, 'hidden': False, 'textLabel': [{'field': None, 'color': [255, 255, 255], 'size': 18, 'offset': [0, 0], 'anchor': 'start', 'alignment': 'center', 'outlineWidth': 0, 'outlineColor': [255, 0, 0, 255], 'background': False, 'backgroundColor': [0, 0, 200, 255]}]}, 'visualChannels': {'colorField': {'name': 'VIL', 'type': 'integer'}, 'colorScale': 'quantile', 'strokeColorField': None, 'strokeColorScale': 'quantile', 'sizeField': None, 'sizeScale': 'linear', 'heightField': None, 'heightScale': 'linear', 'radiusField': None, 'radiusScale': 'linear'}}, {'id': 'jkl0v3o', 'type': 'geojson', 'config': {'dataId': 'counties', 'label': 'counties', 'color': [254, 137, 26], 'highlightColor': [252, 242, 26, 255], 'columns': {'geojson': 'geometry'}, 'isVisible': True, 'visConfig': {'opacity': 0.2, 'strokeOpacity': 0.2, 'thickness': 0.5, 'strokeColor': [34, 63, 154], 'colorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'strokeColorRange': {'name': 'Global Warming', 'type': 'sequential', 'category': 'Uber', 'colors': ['#5A1846', '#900C3F', '#C70039', '#E3611C', '#F1920E', '#FFC300']}, 'radius': 10, 'sizeRange': [0, 10], 'radiusRange': [0, 50], 'heightRange': [0, 500], 'elevationScale': 5, 'enableElevationZoomFactor': True, 'stroked': True, 'filled': True, 'enable3d': False, 'wireframe': False}, 'hidden': False, 'textLabel': [{'field': None, 'color': [255, 255, 255], 'size': 18, 'offset': [0, 0], 'anchor': 'start', 'alignment': 'center', 'outlineWidth': 0, 'outlineColor': [255, 0, 0, 255], 'background': False, 'backgroundColor': [0, 0, 200, 255]}]}, 'visualChannels': {'colorField': None, 'colorScale': 'quantile', 'strokeColorField': None, 'strokeColorScale': 'quantile', 'sizeField': None, 'sizeScale': 'linear', 'heightField': None, 'heightScale': 'linear', 'radiusField': None, 'radiusScale': 'linear'}}], 'effects': [], 'interactionConfig': {'tooltip': {'fieldsToShow': {'counties': [{'name': 'primary', 'format': None}], 'storm': [{'name': 'ZTIME', 'format': None}, {'name': 'LON', 'format': None}, {'name': 'LAT', 'format': None}, {'name': 'WSR_ID', 'format': None}, {'name': 'CELL_ID', 'format': None}]}, 'compareMode': False, 'compareType': 'absolute', 'enabled': True}, 'brush': {'size': 0.5, 'enabled': False}, 'geocoder': {'enabled': False}, 'coordinate': {'enabled': False}}, 'layerBlending': 'normal', 'overlayBlending': 'normal', 'splitMaps': [], 'animationConfig': {'currentTime': None, 'speed': 1}, 'editor': {'features': [], 'visible': True}}, 'mapState': {'bearing': 0, 'dragRotate': False, 'latitude': 35.37345816671503, 'longitude': -97.45340016562497, 'pitch': 0, 'zoom': 6, 'isSplit': False, 'isViewportSynced': True, 'isZoomLocked': False, 'splitMapViewports': []}, 'mapStyle': {'styleType': 'dark-matter', 'topLayerGroups': {}, 'visibleLayerGroups': {'label': True, 'road': True, 'border': False, 'building': True, 'water': True, 'land': True, '3d building': False}, 'threeDBuildingColor': [15.035172933000911, 15.035172933000911, 15.035172933000911], 'backgroundColor': [0, 0, 0], 'mapStyles': {}}}}

# Create an interactive map using SedonaKepler

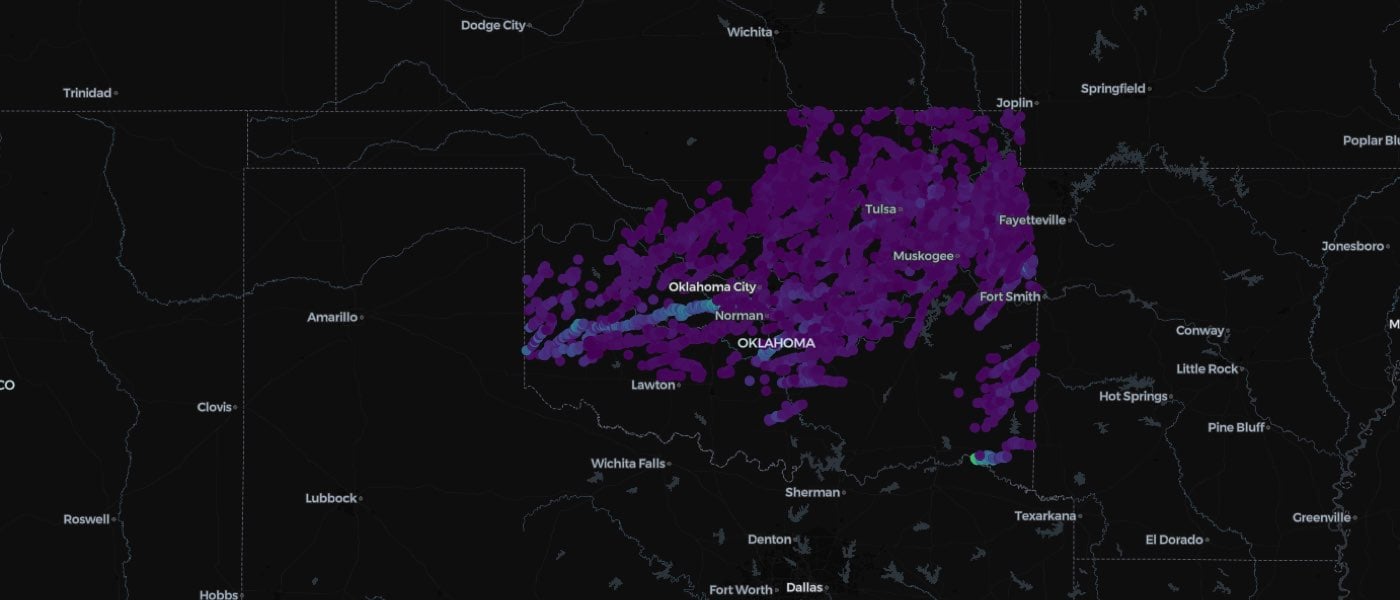

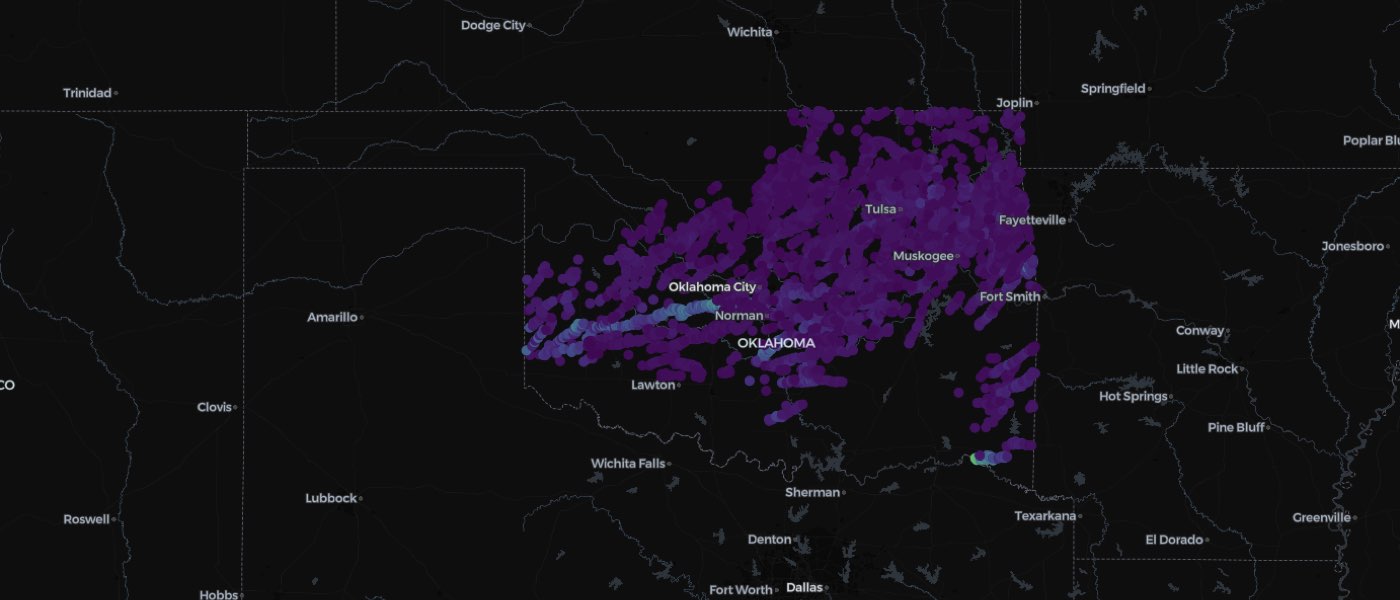

oklahoma_storm_20230427_map = SedonaKepler.create_map(oklahoma_storm_20230427_df.where(col("date") == "2023-04-27"), name="storm", config=map_config)
SedonaKepler.add_df(oklahoma_storm_20230427_map, oklahoma_counties_df, name = "counties")

oklahoma_storm_20230427_map
