Spatial Catalog

The Spatial Catalog section of Wherobots Cloud centralizes datasets from various sources to enable geospatial analysis and insights.

These datasets are cleaned and transformed into Havasu format for fast and efficient analytics with WherobotsDB in Wherobots Cloud.

These datasets are available for free within Wherobots Cloud, with a subset of them reserved to our Professional or Enterprise Edition Organizations.

If you are interested in upgrading your Organization, see Upgrade Organization or Wherobots Pricing.

Dataset Catalogs

The Spatial Catalog is comprised of 2 categories:

  • wherobots_open_data: Datasets available to all Organization Editions (Community, Professional, and Enterprise).
  • wherobots_pro_data: Datasets restricted to Paid Organization Editions (Professional and Enterprise).
Dataset Name Availability Type Count Description
Overture Maps buildings/building All Organization Editions Polygon 785 million Any human-made structures with roofs or interior spaces
Overture Maps places/place All Organization Editions Point 59 million Any business or point of interest within the world
Overture Maps admins/administrativeBoundary All Organization Editions LineString 96 thousand Any officially defined border between two Administrative Localities
Overture Maps admins/locality All Organization Editions Point 2948 Countries and hierarchical subdivisions of countries
Overture Maps transportation/connector All Organization Editions Point 330 million Points of physical connection between two or more segments
Overture Maps transportation/segment All Organization Editions LineString 294 million Center-line of a path which may be traveled
Overture Places
with Isochrones 🆕
Professional
or
Enterprise Edition
Point 53.2 million precomputed travel isochrones Wherobots added precomputed 5, 10, 15, and 20-min outbound driving isochrones for all 13.3M US locations in the Overture Places dataset.
Google & Microsoft open buildings Professional
or
Enterprise Edition
Polygon 2.5 billion Google & Microsoft Open Buildings, combined by VIDA
LandSAT surface temperature Professional
or
Enterprise Edition
Raster (GeoTiff) 166K images, 10 TB size The temperature of the Earth's surface in Kelvin, from Aug 2023 to Oct 2023
US Census ZCTA codes Professional
or
Enterprise Edition
Polygon 33144 ZIP Code Tabulation Areas defined in 2018
NYC TLC taxi trip records Professional
or
Enterprise Edition
Point 200 million NYC TLC taxi trip pickup and dropoff records per trip
Open Street Maps all nodes Professional
or
Enterprise Edition
Point 8 billion All the nodes of the OpenStreetMap Planet dataset
Open Street Maps postal codes Professional
or
Enterprise Edition
Polygon 154 thousand Boundaries of postal code areas as defined in OpenStreetMap
Weather events Professional
or
Enterprise Edition
Point 8.6 million Events such as rain, snow, storm, from 2016 - 2022
Wild fires Professional
or
Enterprise Edition
Point 1.8 million Wildfire that occurred in the United States from 1992 to 2015

Overture Places with Isochrones Licensing

Access to Overture Places with Isochrones through the Wherobots Spatial Catalog requires a Professional or Enterprise Edition Organization.

The dataset itself is provided under the Community Data License Agreement – Permissive, Version 2.0, governing its use if obtained or redistributed. This dataset also carries the licenses inherited from its source data.

Accessing datasets

Catalogs for the datasets your account has access to are automatically configured in your environment's SedonaContext, and can be directly referenced by the following format: CATALOG_NAME.DATABASE_NAME.TABLE_NAME.

Organization members can read these tables by calling sedona.table(CATALOG_NAME.DATABASE_NAME.TABLE_NAME).show().

Inspecting data catalogs

You can inspect the existing databases and tables in a catalog as follows:

Show database names

sedona.sql("SHOW SCHEMAS IN wherobots_pro_data").show()
+----------------+
|       namespace|
+----------------+
|google_microsoft|
|         landsat|
|        nyc_taxi|
|             osm|
|       us_census|
|         weather|
+----------------+

Show table names

Use weather database as an example:

sedona.sql("SHOW TABLES IN wherobots_pro_data.weather").show()
+---------+--------------+-----------+
|namespace|     tableName|isTemporary|
+---------+--------------+-----------+
|  weather|weather_events|      false|
|  weather|    wild_fires|      false|
+---------+--------------+-----------+

Show table schema and content

Use weather.weather_events as an example:

sedona.table("wherobots_pro_data.weather.weather_events").printSchema()
root
 |-- EventId: string (nullable = true)
 |-- Type: string (nullable = true)
 |-- Severity: string (nullable = true)
 |-- StartTime(UTC): string (nullable = true)
 |-- EndTime(UTC): string (nullable = true)
 |-- Precipitation(in): string (nullable = true)
 |-- TimeZone: string (nullable = true)
 |-- AirportCode: string (nullable = true)
 |-- LocationLat: string (nullable = true)
 |-- LocationLng: string (nullable = true)
 |-- City: string (nullable = true)
 |-- County: string (nullable = true)
 |-- State: string (nullable = true)
 |-- ZipCode: string (nullable = true)
 |-- geometry: geometry (nullable = true)

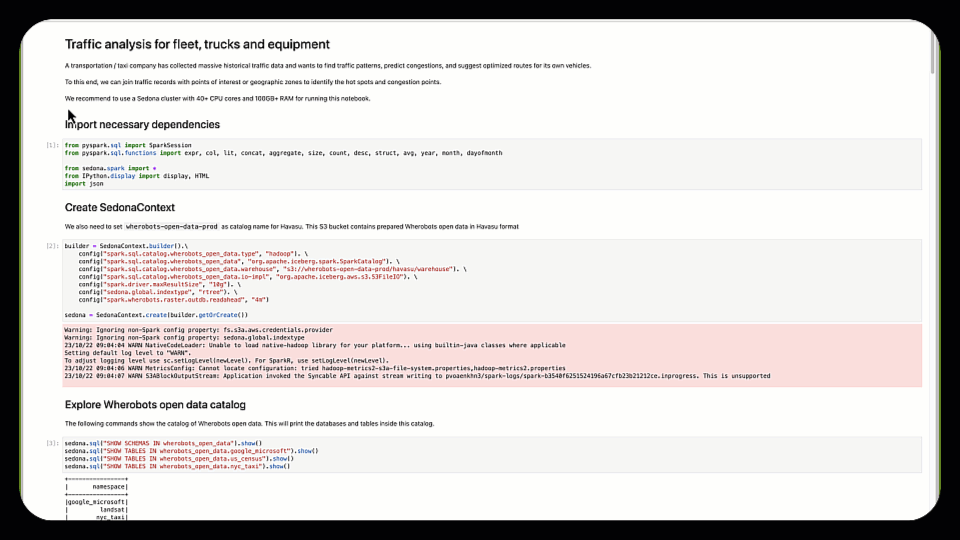

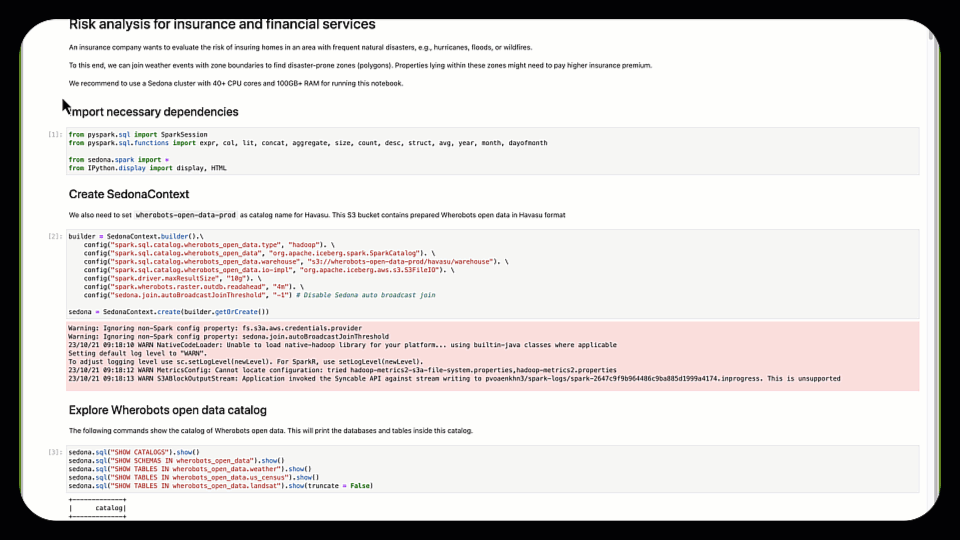

Example notebooks

Wherobots provides example notebooks for various use cases to demonstrate how you can link your data to the physical world and drive insights.

Some notebooks, like those with raster inference examples, can only be executed by Professional and Enterprise Edition Organizations on Wherobots cloud.

Overviews of these notebooks are as follows.
