Spatial Data Generator

WherobotsDB offers a spatial data generator called Spider. It is a data source that generates random spatial data based on the user-specified parameters.

Quick Start

Once you have your SedonaContext object created, you can create a DataFrame with the spider data source.

df_random_points = sedona.read.format("spider").load(n=1000, distribution='uniform')
df_random_boxes = sedona.read.format("spider").load(n=1000, distribution='gaussian', geometryType='box', maxWidth=0.05, maxHeight=0.05)
df_random_polygons = sedona.read.format("spider").load(n=1000, distribution='bit', geometryType='polygon', minSegment=3, maxSegment=5, maxSize=0.1)

Now we have three DataFrames with random spatial data. We can show the first three rows of the df_random_points DataFrame to verify the data is generated correctly.

df_random_points.show(3, False)

Output:

+---+---------------------------------------------+
|id |geometry                                     |
+---+---------------------------------------------+
|1  |POINT (0.8781393502074886 0.5925787985028703)|
|2  |POINT (0.3159498147172185 0.1907316577342276)|
|3  |POINT (0.2618294441170143 0.3623164670133922)|
+---+---------------------------------------------+
only showing top 3 rows

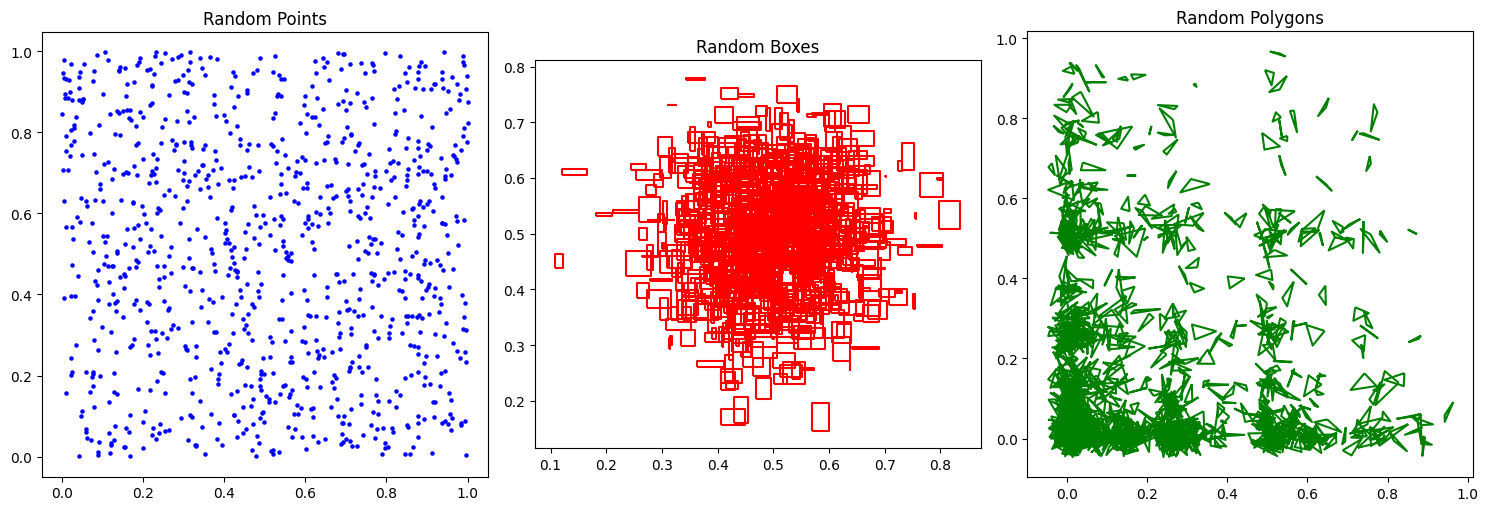

The generated DataFrame has two columns: id and geometry. The id column is the unique identifier of each record, and the geometry column is the randomly generated spatial data. We can plot all 3 DataFrames using the following code.

import matplotlib.pyplot as plt
import geopandas as gpd

# Convert DataFrames to GeoDataFrames
gdf_random_points = gpd.GeoDataFrame(df_random_points.toPandas(), geometry='geometry')
gdf_random_boxes = gpd.GeoDataFrame(df_random_boxes.toPandas(), geometry='geometry')
gdf_random_polygons = gpd.GeoDataFrame(df_random_polygons.toPandas(), geometry='geometry')

# Create a figure and a set of subplots
fig, axes = plt.subplots(1, 3, figsize=(15, 5))

# Plot each GeoDataFrame on a different subplot
gdf_random_points.plot(ax=axes[0], color='blue', markersize=5)
axes[0].set_title('Random Points')

gdf_random_boxes.boundary.plot(ax=axes[1], color='red')
axes[1].set_title('Random Boxes')

gdf_random_polygons.boundary.plot(ax=axes[2], color='green')
axes[2].set_title('Random Polygons')

# Adjust the layout
plt.tight_layout()

# Show the plot
plt.show()

Output:

You can browse the SpiderWeb website to play with the parameters and see how they affect the generated data. Once you are satisfied with the parameters, you can use them in your Spider DataFrame creation code. The following sections will explain the parameters in detail.

Common Parameters

The following parameters are common to all distributions.

Parameter	Description	Default Value
n	Number of records to generate	100
distribution	Distribution type. See Distributions for details.	`uniform`
numPartitions	Number of partitions to generate	The default parallelism of your SedonaContext
seed	Random seed	Current timestamp in milliseconds

The same seed parameter may produce different results with different Java versions or WherobotsDB versions.

Distributions

Spider supports generating random points, boxes and polygons under various distributions. You can explore the capabilities of Spider by visiting the SpiderWeb website. You can specify the distribution type using the distribution parameter. The parameters for each distribution are listed below.

Uniform Distribution

The uniform distribution generates random geometries in the unit square [0, 1] x [0, 1]. This distribution can be selected by setting the distribution parameter to uniform.

Parameter	Description	Default Value
geometryType	Geometry type, either `point`, `box` or `polygon`	`point`
maxWidth	Maximum width of the generated boxes	0.01
maxHeight	Maximum height of the generated boxes	0.01
minSegment	Minimum number of segments of the generated polygons	3
maxSegment	Maximum number of segments of the generated polygons	3
maxSize	Maximum size of the generated polygons	0.01

Example:

import geopandas as gpd
df = sedona.read.format("spider").load(n=300, distribution='uniform', geometryType='box', maxWidth=0.05, maxHeight=0.05)
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').boundary.plot()

Gaussian Distribution

The Gaussian distribution generates random geometries in a Gaussian distribution with mean [0.5, 0.5] and standard deviation [0.1, 0.1]. This distribution can be selected by setting the distribution parameter to gaussian.

Parameter	Description	Default Value
geometryType	Geometry type, either `point`, `box` or `polygon`	`point`
maxWidth	Maximum width of the generated boxes	0.01
maxHeight	Maximum height of the generated boxes	0.01
minSegment	Minimum number of segments of the generated polygons	3
maxSegment	Maximum number of segments of the generated polygons	3
maxSize	Maximum size of the generated polygons	0.01

Example:

import geopandas as gpd

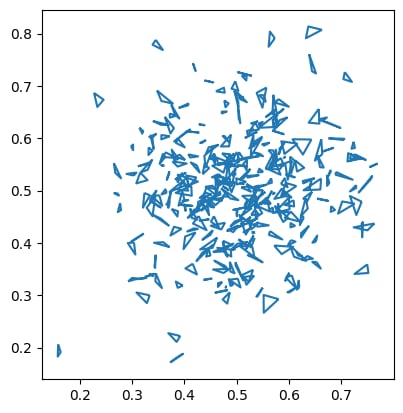

df = sedona.read.format("spider").load(n=300, distribution='gaussian', geometryType='polygon', maxSize=0.05)
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').boundary.plot()

Bit Distribution

The bit distribution generates random geometries in a bit distribution. This distribution can be selected by setting the distribution parameter to bit.

Parameter	Description	Default Value
geometryType	Geometry type, either `point`, `box` or `polygon`	`point`
probability	Probability of setting a bit	0.2
digits	Number of digits in the generated data	10
maxWidth	Maximum width of the generated boxes	0.01
maxHeight	Maximum height of the generated boxes	0.01
minSegment	Minimum number of segments of the generated polygons	3
maxSegment	Maximum number of segments of the generated polygons	3
maxSize	Maximum size of the generated polygons	0.01

Example:

import geopandas as gpd
df = sedona.read.format("spider").load(n=300, distribution='bit', geometryType='point', probability=0.2, digits=10)
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').plot(markersize=1)

Diagonal Distribution

The diagonal distribution generates random geometries on the diagonal line y = x with some dispersion for geometries that are not exactly on the diagonal. This distribution can be selected by setting the distribution parameter to diagonal.

Parameter	Description	Default Value
geometryType	Geometry type, either `point`, `box` or `polygon`	`point`
percentage	The percentage of records that are perfectly on the diagonal	0.5
buffer	For points not exactly on the diagonal, the buffer in which they are dispersed	0.5
maxWidth	Maximum width of the generated boxes	0.01
maxHeight	Maximum height of the generated boxes	0.01
minSegment	Minimum number of segments of the generated polygons	3
maxSegment	Maximum number of segments of the generated polygons	3
maxSize	Maximum size of the generated polygons	0.01

Example:

import geopandas as gpd
df = sedona.read.format("spider").load(n=300, distribution='diagonal', geometryType='point', percentage=0.5, buffer=0.5)
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').plot(markersize=1)

Sierpinski Distribution

The Sierpinski distribution generates random geometries distributed on a Sierpinski triangle. This distribution can be selected by setting the distribution parameter to sierpinski.

Parameter	Description	Default Value
geometryType	Geometry type, either `point`, `box` or `polygon`	`point`
maxWidth	Maximum width of the generated boxes	0.01
maxHeight	Maximum height of the generated boxes	0.01
minSegment	Minimum number of segments of the generated polygons	3
maxSegment	Maximum number of segments of the generated polygons	3
maxSize	Maximum size of the generated polygons	0.01

Example:

import geopandas as gpd
df = sedona.read.format("spider").load(n=2000, distribution='sierpinski', geometryType='point')
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').plot(markersize=1)

Parcel Distribution

This generator produces boxes that resemble parcel areas. It works by recursively splitting the input domain (unit square) along the longest dimension and then randomly dithering each generated box to add some randomness. This generator can only generate boxes. This distribution can be selected by setting the distribution parameter to parcel.

Parameter	Description	Default Value
dither	The amount of dithering as a ratio of the side length. Allowed range [0, 1]	0.5
splitRange	The allowed range for splitting boxes. Allowed range [0.0, 0.5] 0.0 means all values are allowed. 0.5 means always split in half.	0.5

Example:

import geopandas as gpd
df = sedona.read.format("spider").load(n=300, distribution='parcel', dither=0.5, splitRange=0.5)
gpd.GeoDataFrame(df.toPandas(), geometry='geometry').boundary.plot()

The number of partitions generated by the parcel distribution is always power of 4. This is for guaranteeing the quality of the generated data. If the specified numPartitions is not a power of 4, it will be automatically adjusted to the nearest power of 4 smaller or equal to the specified value.

Affine Transformation

The random spatial data generated by Spider are mostly in the unit square [0, 1] x [0, 1]. If you need to generate random spatial data in a different region, you can specify affine transformation parameters to scale and translate the data to the target region. The following code demonstrates how to generate random spatial data in a different region using affine transformation. The affine transformation parameters are:

Parameter	Description	Default Value
translateX	Translate the data horizontally	0
translateY	Translate the data vertically	0
scaleX	Scale the data horizontally	1
scaleY	Scale the data vertically	1
skewX	Skew the data horizontally	0
skewY	Skew the data vertically	0

The affine transformation is applied to the generated data as follows:

x' = translateX + scaleX * x + skewX * y
y' = translateY + skewY * x + scaleY * y

Example:

import geopandas as gpd
df_random_points = sedona.read.format("spider").load(n=1000, distribution='uniform', translateX=0.5, translateY=0.5, scaleX=2, scaleY=2)
gpd.GeoDataFrame(df_random_points.toPandas(), geometry='geometry').plot(markersize=1)

The data is now in the region [0.5, 2.5] x [0.5, 2.5].

References

Puloma Katiyar, Tin Vu, Sara Migliorini, Alberto Belussi, Ahmed Eldawy. “SpiderWeb: A Spatial Data Generator on the Web”, ACM SIGSPATIAL 2020, Seattle, WA
Beast Spatial Data Generator: https://bitbucket.org/bdlabucr/beast/src/master/doc/spatial-data-generator.md
SpiderWeb: A Spatial Data Generator on the Web: https://spider.cs.ucr.edu/
SpiderWeb YouTube Video: https://www.youtube.com/watch?v=h0xCG6Swdqw
